| Brand Name : | SHRT |
| Model Number : | SHRT-TH/THS |
| Certification : | API 6A |
| Price : | USD 3000.00---30000.00/ SET |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 50 Set /Month |
| Delivery Time : | Normally is 7 ~ 35 days after payment |
SHANGHAI RUITOU PETROLEUM MACHINERY CO.,LTD.
Shanghai RuiTou Petroleum Machinery Co., Ltd is a professional
company selling all kinds oil wellhead equipments. We are
specialized in providing specialization& globalization services
from design, manufacture, maintenance and inventory for our
customers. We assist our customers get the prominent quality and
best price of oil wellhead equipments based on the established a
complete set of quality assurance system and customer service
management system.So our products are widely recognized and trusted
by users and can meet continuously changing economic and social
needs.
We have a strong sales center in Shanghai, manufacture base and
R&D center in Yancheng city. The team of Shanghai RuiTou is
composed of a group of engineers with experience of long term
operation in oil&gas field. We provide products and accessories
conforming to the API6A, 16 A, 16C, 6 D ,7K,8A,8C standard . Our
products cover Blowout Preventer, Wellhead, Christmas Tree,
Manifolds, Valves, Wellhead Tool and Various Types of Accessories
etc.
Welcome new and old customers from all over the world to contact us
for future business relationships and mutual success! And we are
always in the development of the best agents to serve as a
long-term partner from you country.

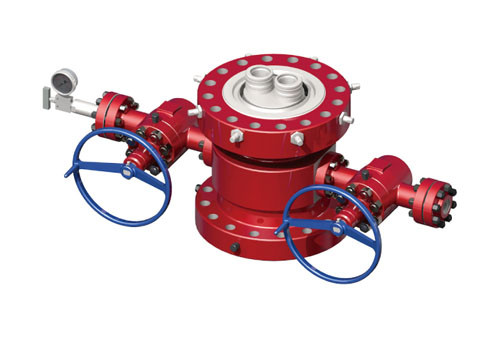

API 6A 7-1/16" 5000psi PSL1,PR1,DD Grade Tubing Head,Tubing Head
Spool
Specification:
Work Pressure:2000-20000psi
Work Temperature:PU/LU
Material Class:AA ~ HH
Bottom Flange Size(in): 7 1/16 " ~ 13-5/8"
Product Specification Level: PSL1 ~ PSL4
Performance Requirement: PR1 , PR2
Bottom Connection: Welded Type, Slips Type, Thread Type.
Outlet Connection: Thread Type, Flange Type(c/w VR plug thread).
Descriptions:

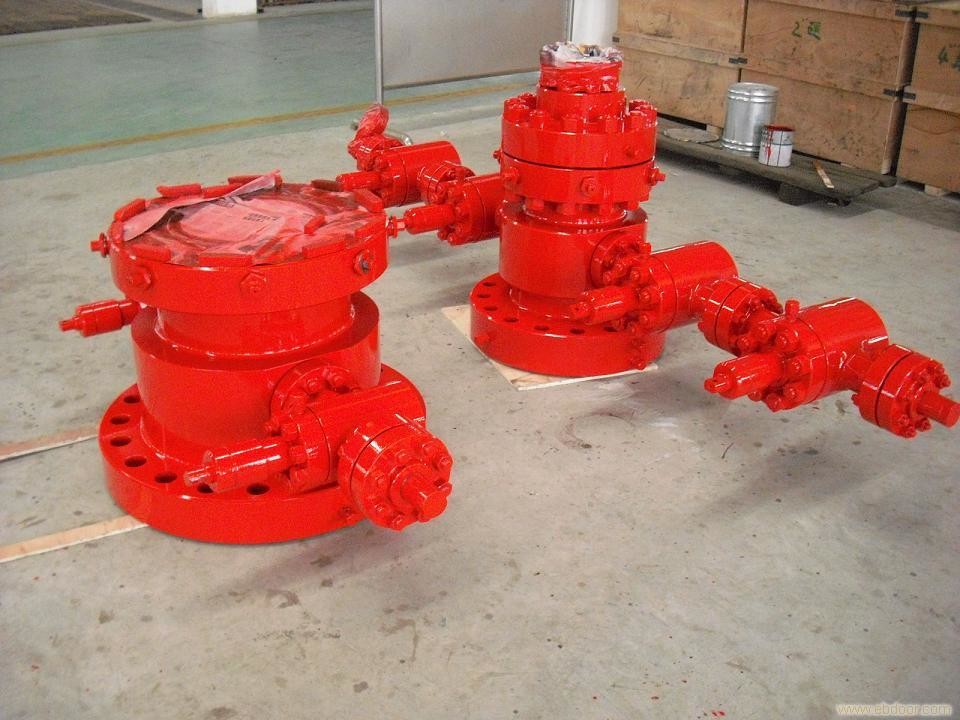

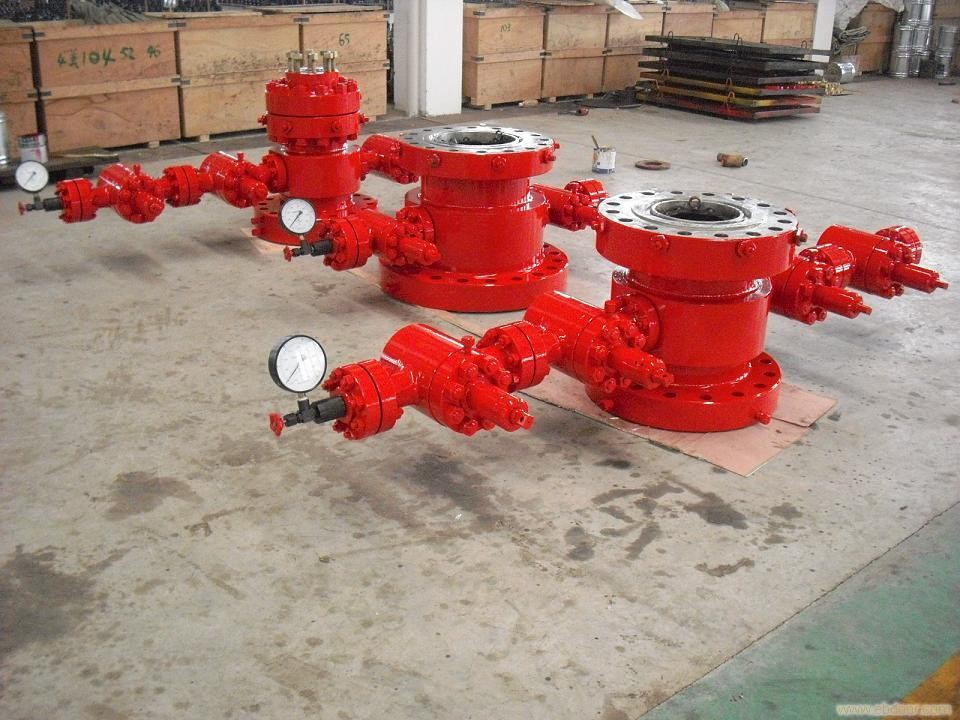

Tubing Head is the equipment attached to the casing spool used to hang the tubing (smallest casing string) and seal the annular between the tubing and casing.
The top spool on a wellhead assembly contains the highest pressure in the wellhead, and contains a load shoulder to hang the tubing hanger and tubing string. When the well is completed, the tree is installed on top of the head with a tubing head adapter. Providing a means to support and test the BOPs while completing the well, the tubing head is a necessary component when drilling and completing a well.
The standard tubing head product line combines a straight-bore profile with a varied number of aligning pins, depending on the chosen model. Sanmon’s tubing heads eliminate the “wedgelocking” of the bowl protector, BOP test plugs, and tubing hangers. As additional advantages, valve removal (VR) threads are standard on all flanged or studded tubing head outlets, and if a 9” or larger top flange is required, the C-29 casing hanger can be used for casing-type completions.Lock-down screw - A mechanism that actuates the hanger/pack-off seals in the event of annular pressure, preventing casing movement caused by thermal expansion during production.
Bottom Connections
Bolt-through flange, studded flange and clamp-hub connections are
available. The type and pressure rating used must match the top flange of the previous casing spool or
crossover flange. Bolt-through flange connections are the most popular and economical type of connection in
certain parts of the world. Clamphub connections are sometimes specified, because they are much faster
to make up and because they reduce the diameter and weight of the assembly when space limitations are
present.
Top Connections
Sanmon Surface Wellhead tubing heads have either bolt-through flange or
clamp hub top connections, which are compatible with all Sanmon tubing head adapters. The producing pressure of the well normally determines the pressure rating of the top connection.
Product Name | API 6A 2-1/16" ~ 7-1/16" Tubing Head Spool/Tubing Hanger Wellhead
Equipments |
Working Pressure | 2000Psi~20000Psi |
Working Temperature | PU(-29℃～＋121℃) |
Product Material Level | AA, BB, CC, DD, EE, FF,HH |
Product Specification Level | PSL1~PSL3 |
Performance Requirement Level | PR1~PR2 |
Working medium | Oil, gas, mud and water |
Product Features | The wellhead equipment is designed and manufactured according to
SY5-93 and API spec 6A.All pressure bearing parts and flanges are
made of quality alloy steel forgings, NDT and special heat treated
to guarantee safety, providing the wellhead with excellent
sulfide-resistant property. It consists of bottom flange, upper flange, tubing head, gate valve, small cross, stop valve, and meter, etc. |
