API 16D control system or control panel or control box for manifold or BOP stacks

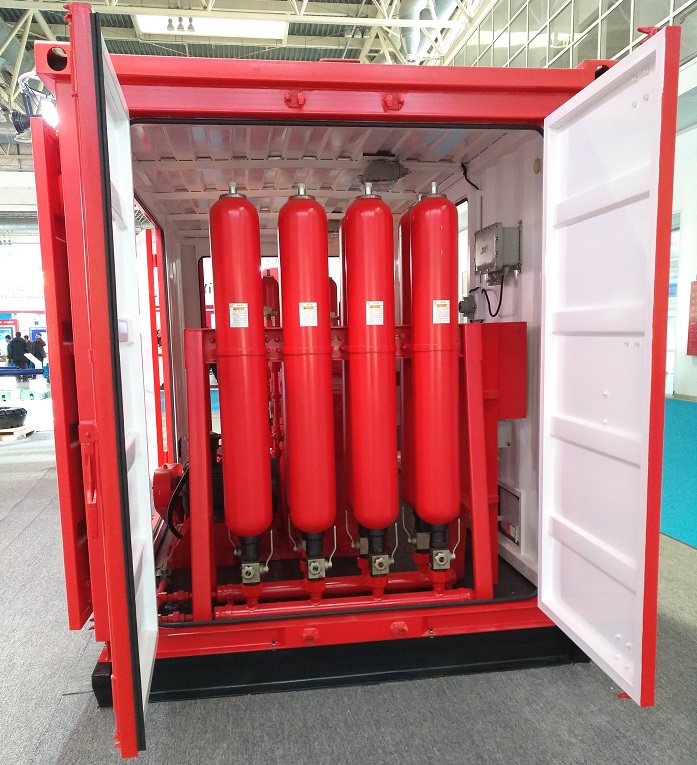

Bop Remote control system is special equipment, which is used to
control BOP, hydraulic chock, kill system and diverter equipment,
and indispensable equipment for blowout preventer during drilling
or workover in petroleum and natural gas industry.
The function of the Remote control system for surface mounted BOP
stacks is preparing and prestoring enough hydraulic oil and
controlling its flow direction, in order to open or close BOP
quickly. As the hydraulic oil used, the pressure drops down, when
the pressure lowers to a certain value, the Accumulator Unit will renew the hydraulic oil automatically, to keep the pressure
in a certain high value.
| Type | Number of controlled objects | Accumulators sets | Volume | Motor | Flow volume of pump | |||||||
| Annular | Ram | Choke | Spare | Nominal | Effective | Alignment | Electric | Pneumatic | Manual | |||
| FKQ1440-14 | 1 | 4 | 7 | 2 | 60×24 | 720 | Rear | 2300 | 18.5×2 | 46×2 | 60×4 | |
| FKQ1280-8 | 1 | 3 | 2 | 1 | 80×16 | 640 | Side | 1650 | 18.5×2 | 46×2 | 60×2 | |
| FKQ960-8 | 1 | 3 | 3 | 1 | 60×16 | 480 | Side | 1650 | 18.5×2 | 46×2 | 60×2 | |
| FKQ840-8 | 1 | 3 | 3 | 1 | 60×14 | 420 | Side | 1650 | 18.5 | 46 | 60×2 | |
| FKQ1280-7B | 1 | 3 | 2 | 1 | 80×16 | 640 | Side | 1600 | 18.5×2 | 46×2 | 60×2 | |
| FKQ800-7 | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7B | 1 | 3 | 2 | 1 | 80×10 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7C | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7D | 1 | 3 | 2 | 1 | 40×20 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | |
| FKQ800-7E | 1 | 3 | 2 | 1 | 400 | Side | 1600 | 18.5 | 46 | 60×2 | ||
| FKQ720-6 | 1 | 3 | 2 | 60×12 | 360 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ720-6C | 1 | 3 | 2 | 60×12 | 360 | Rear | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ720-6D | 1 | 3 | 2 | 60×12 | 360 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6 | 1 | 3 | 2 | 40×16 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6B | 1 | 3 | 2 | 80×8 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6C | 1 | 3 | 2 | 40×16 | 320 | Rear | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6D | 1 | 3 | 2 | 40×16 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | ||
| FKQ640-6E | 1 | 3 | 2 | 320 | Side | 1290 | 18.5 | 46 | 60×2 | |||
| FKQ480-5 | 1 | 3 | 1 | 40×12 | 200 | Side | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ480-5B | 1 | 3 | 1 | 80×6 | 200 | Side | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ480-5C | 1 | 3 | 1 | 40×12 | 200 | Rear | 1100 | 18.5 | 46 | 60×2 | ||
| FKQ480-5E | 1 | 3 | 1 | 200 | Side | 1100 | 18.5 | 46 | 60×2 | |||
| FKQ320-4 | 1 | 2 | 1 | 40×8 | 160 | Side | 790 | 11 | 35 | 60×1 | ||
| FKQ320-4C | 1 | 2 | 1 | 40×8 | 160 | Rear | 790 | 11 | 35 | 60×1 | ||
| FKQ320-4E | 1 | 2 | 1 | 160 | Side | 790 | 11 | 35 | 60×1 | |||
| FKQ240-3C | 1 | 1 | 1 | 40×6 | 120 | Rear | 550 | 11 | 35 | 60×1 | ||
| FK240-4 | 1 | 2 | 1 | 40×6 | 120 | Rear | 550 | 11 | 20 | 14/28 | ||
| FK240-4E | 1 | 2 | 1 | 120 | Rear | 550 | 11 | 20 | 14/28 | |||
| FK240-3 | 1 | 1 | 1 | 40×6 | 120 | Rear | 550 | 11 | 20 | 14/28 | ||
| FK125-3 | 1 | 1 | 1 | 25×5 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | ||
| FK125-3E | 1 | 1 | 1 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | |||
| FK125-2 | 1 | 1 | 25×5 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | |||
| FK125-2E | 1 | 1 | 62.5 | Rear | 440 | 7.5 | 20 | 14/28 | ||||
