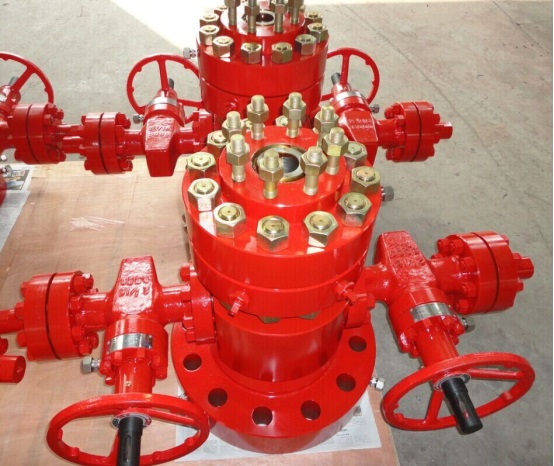

Tubing Spool

1. Structure of Tubing Head

Tubing head is usually a spool with both flanged ends, which is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consists of tubing head spool and tubing hanger.

2.Functions:

1) Hang the tubing string inside well;

2) Seal the annular space between tubing and casing;

3) Give a crossorer to connect casing head downwards and to connect Christmas tree upwards;

4) Provide both side outlets in tubing head spool body through which to execute injection and well-wash operation.

Design features:

Fabricated with BT secondary seal, and could be field mounted by cutting casing pipe to accommodate the seal height.

Tubing hanger and top flange are designed to run cable through.

Several control ports are available for connecting pipeline.

RuiTou manufactures bubing head spool in full accordance with API 6A,the body is made of forged or special smelt steel,providing high bearing strength,safety and reliability.Side outlets could be pipe line thread or studded, studded side outlet is machined with 1,1/2” female thread.
